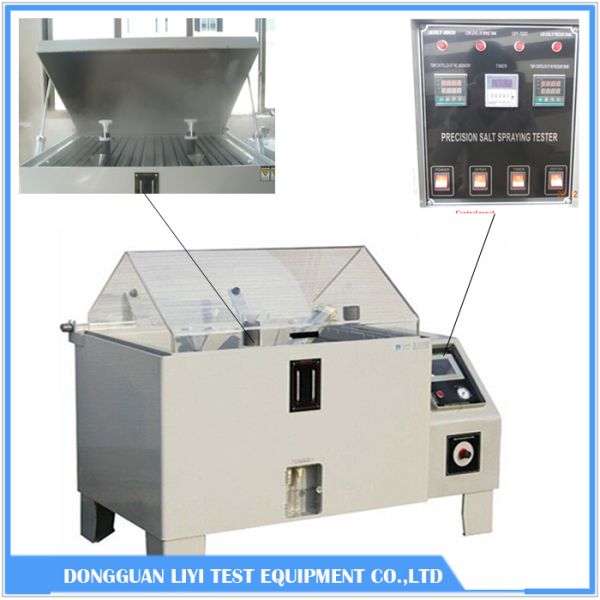

PVC Environmental Salt Spray Test Chamber / Corrosion Resistance Fog Test Chamber

Brand Name : LIYI

Model Number : LY-609-90

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : US$999~2999/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 7 - 15 work days

Packaging Details : export polywood packing

Test Chamber Capacity(L) : 270L

Test Chamber Size : 90*60*50 cm

Max volum of test liquid(L) : 108L

Volume : 141*88*128cm

Voltage : 220V

Controller : PID controller

Warranty Period : 12 months

Usage : Salt Spray Corrosion Test Chamber

Power : Electronic

Material : PVC material

Contact Now

PVC Environmental Salt Spray Test Machine / Corrosion Resistance Fog Test Chamber

Product introduction:

The Salt Spray Test (Fog Test) is an accelerated corrosion test used to evaluate the relative corrosion resistance materials exposed to a salt spray or salt fog at an elevated temperature. Test specimens are placed in an enclosed salt spray testing cabinet or chamber and subjected to a continuous indirect fog or spray of a salt water solution. This climate is maintained throughout the duration of the test.

Design standard:

CNS:3627,3385,4159,7669,8886；JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.

Specifications:

Model: LY-609-90

Inner Box Size (L×W×H)

90×60×50 cm
Outside Box Size(L×W×H) : 114×88×128 cm
Temperature Range : 35°C~55 °C
Temperature Fluctuations : ≤±0.5°C
Temperature Uniformity : ±1°C
Brine Temperature : 35°C±1°C
Spray Quantity : 1.0~2.0 ml / 80cm2 / hr
Lab Volume : 270L
Brine Tank Capacity : 25L
Power : AC220V,10A
Accessories : Testing Salt/ Measuring tank/ Equipment each 1 set
Equipment Material Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C
PH Salt Spray Method (NSS ACSS6.5~7.2)Corrosion-resistant Testing Method(CASS)3.0~3.2
Multiple Safety Protection Devices : Current discharge protection, over pressure protection,over temperature protection, over load fuse protection

Customize parts:

1. Inner chamber size

2. Inner chamber structure

3. PID programmable controller or PLC touch screen controller
